DIY FANUC CNC Retrofit Kit

If you have the installation capability but not the engineering expertise, buy one of our kits and integrate it yourself

A True "DIY" FANUC CNC Retrofit Kit

Our "Do-It-Yourself" FANUC CNC retrofit kits are ideal for customers who have the chops to tackle the installation on straight-forward machines without accessories like tool changers, pallet changers, on-machine measurement devices, rotary tables, etc. For more dynamic CNC machine tools, grinders, or machines that require mechanical repairs, we also offer turnkey FANUC retrofit solutions.

What's Included In The DIY Retrofit Kit?

The fully assembled and tested FANUC CNC Retrofit Kit comes pre-configured with industry standard parameters, PMC logic, M and G codes, I/O assignments and logic to interface with existing machine functions.  Each retrofit kit will include wiring schematics, installation documentation and operators manuals. Learn more about what's included below:

Don't Sacrifice Reliability & Quality

There are a number of other low-cost CNC Retrofit options on the market, but rarely are they designed with FANUC CNC hardware. FANUC CNCs offer the longest mean time between failure (MTBF) in the industry. Plus, comprehensive diagnostic and troubleshooting tools ensure a low mean time to repair (MTTR).  FANUC CNCs also come with free lifetime tech support.

The DIY Fanuc CNC Retrofit Kit Includes:

In addition to the engineering & documentation listed above, the DIY FANUC CNC Retrofit Kit includes:

  • FANUC 0i-F Plus CNC with 10.4" Display
  • New Electrical Enclosure
  • Operator's Panel
  • MDI Panel
  • Disconnect
  • FANUC MPG Walk-Around Unit
  • 24VDC 48 inputs - 32 outputs
  • Servo motor armature cables
  • Servo feedback cables
  • 220V and 460V options
  • 2-hours of remote support
  • 2-year hardware warranty

DIY-Enclosure-Operator

Installation, Programming & FANUC CNC Retrofit Kit Add-Ons:

Installation of a FANUC CNC Retrofit Kit starts by rewiring the I/O from the current cabinet to the I/O terminals in the new electrical enclosure.  Motor mount adapter plates and couplings need to be designed and fabricated to adapt the new servo, and optional spindle, motors to the machine.  Some troubleshooting and customization may be required to adapt the retrofit kit to your machine.

A standard mill or lathe PMC ladder logic program will be preloaded in the control.  This will provide M codes and designated I/O options for peripheral systems like coolant systems, chip conveyors, work chucks, spindle gears, etc.  NC Parameters for the servo motors, optional spindle motor, MDI panel, operators panel, and I/O will be preset and tested.  Customers are responsible for providing specific machine details regarding gear ratios and ball screw specifications in order to configure the NC parameters for your machine.

Select a FANUC Retrofit Kit From The Pre-Configured Options Below

We recommend that customers start with the kit that best matches the current number of axes and motor sizes on the machine.  All packages will be delivered within 6-8 weeks.  One of our Sales Engineers will follow-up to review your retrofit.

The following packages are designed with 220V motors.  460V pricing is available on request.

Click the DIY Retrofit Kit that best matches your machine & complete the contact form on the next page!

2 Axes Machine Tools

2 Axes Small Machine - Analog Spindle:  $48,800
- (2) Beta iS 8NM / 3000rpm Servo Motors

2 Axes Medium Machine - Analog System:  $51,000
- (2) Beta iS 22NM / 3000rpm Servo Motors



2 Axes Small Machine with Spindle System:  $52,500
- (2) Beta iS 8NM / 3000rpm Servo Motors
- 15HP Beta il 8 / 10000rpm Spindle Motor

2 Axes Medium Machine with Spindle System:  $55,000
- (2) Beta iS 22NM / 3000rpm Servo Motors
- 25HP Beta il 22 / 8000rpm Spindle Motor

2-Axes-Drives-ServoMotors-R1

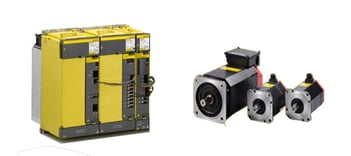

2-Axes-Drives-Servo-Spindle
3 Axes Machine Tools

3 Axes Small Machine - Analog Spindle:  $50,500
- (3) Beta iS 8NM / 3000rpm Servo Motors

3 Axes Medium Machine - Analog Spindle:  $55,000
- (2) Beta iS 22NM / 3000rpm Servo Motors
- (1) Beta iS 30NM / 3000rpm Servo Motor



3 Axes Small Machine with Spindle System:  $53,000
- (3) Beta iS 8NM / 3000rpm Servo Motors
- 15HP Beta il 8 / 10000rpm Spindle Motor

3 Axes Medium Machine with Spindle System:  $58,000
- (2) Beta iS 22NM / 3000rpm Servo Motors
- (1) Beta iS 30NM / 3000rpm Servo Motor
- 25HP Beta il 22 / 8000rpm Spindle Motor

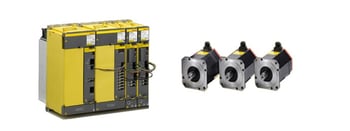

3-Axes-Drives-ServoMotors
3-Axes-Drive-Servo-Spindle-R1
4 Axes Machine Tools


- (1) Beta iS 4NM / 3000rpm Servo Motor
- (3) Beta iS 8NM / 3000rpm Servo Motors

4 Axes Medium Machine - Analog Spindle:  $58,000
- (3) Beta iS 22NM / 3000rpm Servo Motors
- (1) Beta iS 30NM / 3000rpm Servo Motor



4 Axes Small Machine with Spindle System:  $57,500
- (1) Beta iS 4NM / 3000rpm Servo Motor
- (3) Beta iS 8NM / 3000rpm Servo Motors
- 15HP Beta iL 8 / 10000rpm Spindle Motor

4 Axes Medium Machine with Spindle System:  $62,500
- (3) Beta iS 22NM / 3000rpm Servo Motors
- (1) Beta iS 30NM / 3000rpm Servo Motor
- 25HP Beta il 22 / 8000rpm Spindle Motor

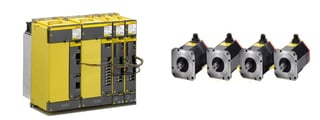

4-Axes-Drives-ServoMotors
4-Axes-Drives-Servo-Spindle-R1

Ready to DIY?

Tell us your machine model so we can follow up and get you going.
