FANUC Robotic Automation

Add automated robot tending with part inspections directly on your machine for highly efficient and reliable unattended processes

FANUC Robot Manufacturing Automation

Robotic Automation is fundamental to the future of manufacturing; enabling companies to substantially increase production by automating their manufacturing process. Our manufacturing automation solutions are different because they're truly turnkey; designed, built, integrated, and serviced by CNC Engineering, Inc.

As part of an overall Automation Strategy, we can implement the following technologies to help you achieve unattended machining:

  • Robotic Machine Part Tending
  • Robotic Pallet Changing
  • Robotic Tool Changing
  • In-Process and Post-Process Part Inspection
  • Tool Monitoring & Adaptive Control
061924_CNC_Drawer_4

Integration for Turnkey Manufacturing Automation

Let us take care of your entire manufacturing automation project - from design to installation.

Our automation experts will build a customized solution for your manufacturing process that includes, but is not limited to:

  • FANUC Robot - industrial and collaborative
  • Interface to the CNC Machine Tool
  • Drawer Systems & Conveyor Systems
  • Grippers
  • Safety Systems
  • Programming Software
  • Training
  • Installation



Ready To Begin Automating?
Call (860-749-1780) or complete this form to discuss your manufacturing automation needs.

Drawer & Conveyor Systems for Machine Tending

Our machine tending drawer & conveyor systems are compatible with any CNC lathe, machining center, or grinder. With turnkey integration from CNC Engineering, these cost effective systems are engineered, installed and supported by one source; starting at $148,000.

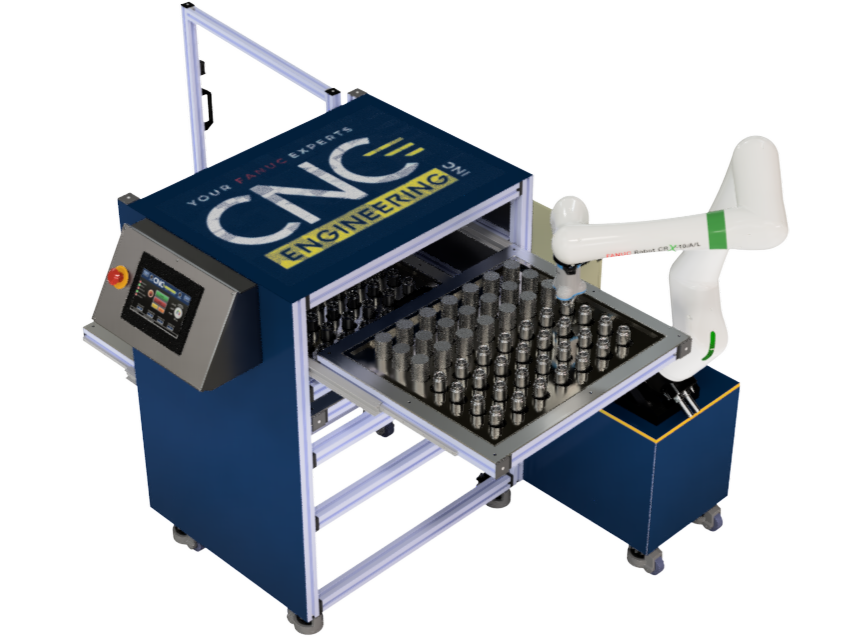

CNC_DrawerSys_1

Simple Drawer System

A simple mobile workstation that has the ability to be moved to other machines and processes while maintaining a small footprint. The drawer system has a multiple drawers that are loaded from the back while the robot picks and places in the front. Each drawer has an angled “V-Block” part holding design, allowing for simple picking and part
holding.

  • Small footprint - robot doesn't block access to the work envelope
  • Easily moved between machines
  • Simple set-up and fully customizable
  • Customized to your part features

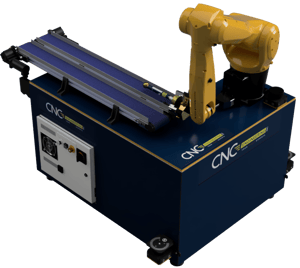

Dual_Conveyor_Highlights_001

Conveyor System

Engineered for flexibility and efficiency, this custom-designed conveyor system seamlessly integrates with your production process while maximizing operator safety, accessibility, and floor space utilization

  • Small footprint - compact L-shaped design wraps around the machine to reduce the footprint
  • Accommodates a large variety of part shapes & sizes
  • Simple set-up and fully customizable
  • Optional touchscreen operator interface

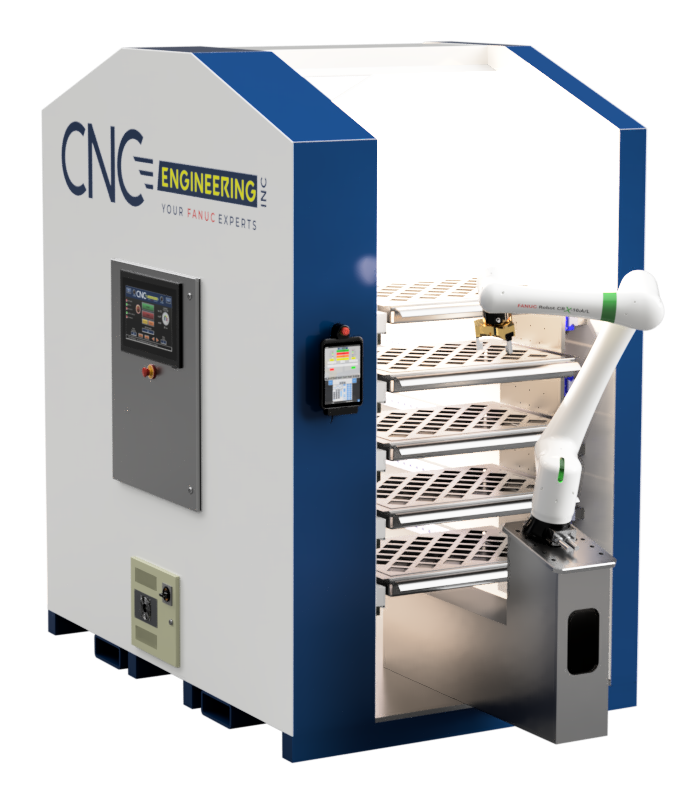

ModAutoDrawer-Overview

Modular Automated Drawer System

The Modular Automated Drawer System is equipped with an HMI touch screen, allowing the user to select part sizes and custom layouts quickly and easily. The HMI is also used to request drawers to the operator position for loading/unloading without the need to stop the robot.

  • Designed to fit both collaborative and industrial robots
  • Up to 5 height adjustable drawers which can be equipped with part specific inserts or a manually adjustable adaptive centering insert.
  • 3 position drawers
  • Light curtain monitored "user side"

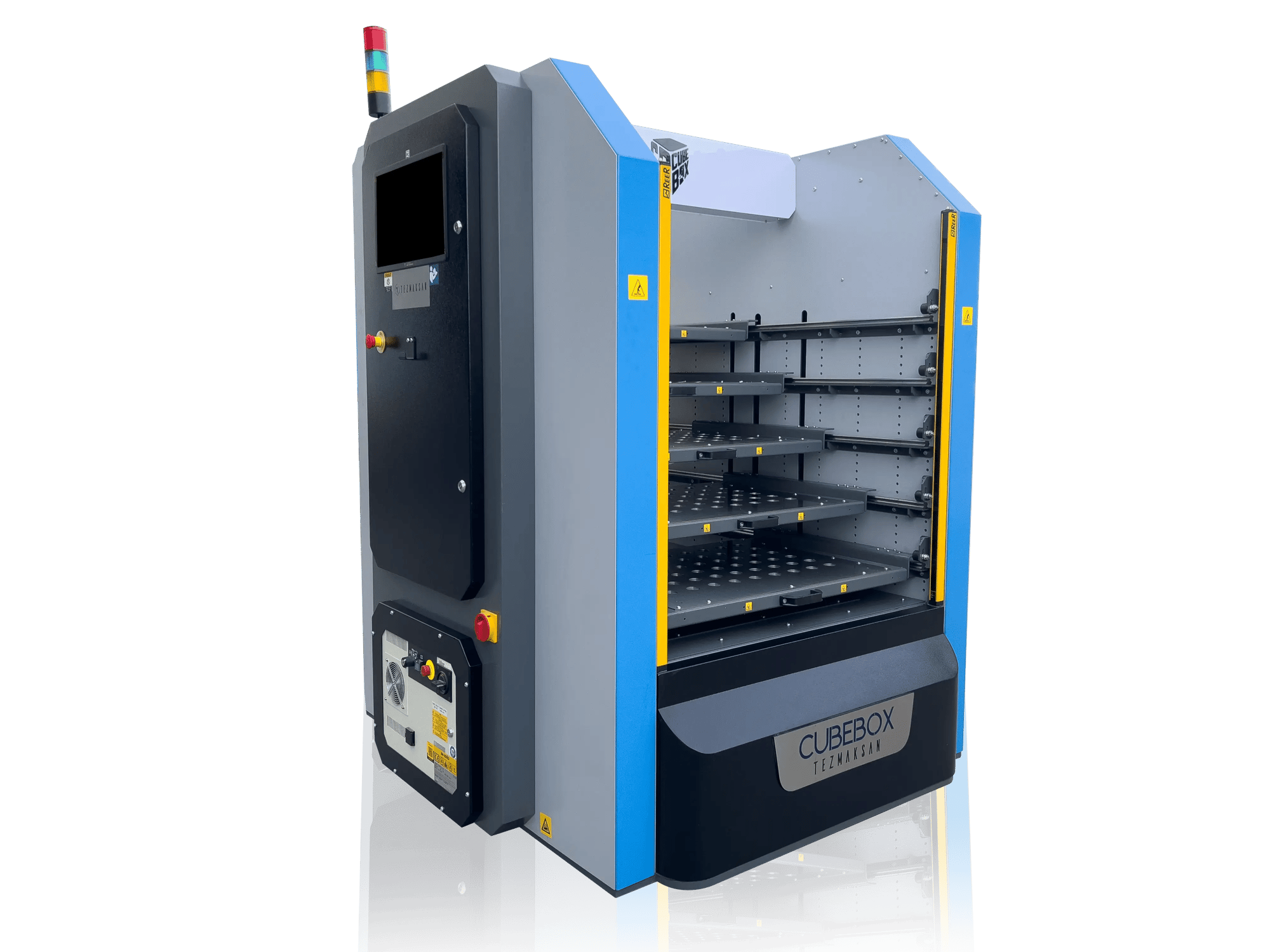

CubeBox_Blues_DR

Tezmaksan CubeBox Blues RT

CubeBOX™ CNC automation systems by Tezmaksan Robot Technologies are designed to enhance manufacturing processes and reduce operator involvement in machine tending.

  • 5-8 Drawer Stacker with 600mm - 800mm size each
  • Max. Workpiece height 135mm
  • Steel Round Bar Workpiece Min - Max Diameter: 5 - 550mm

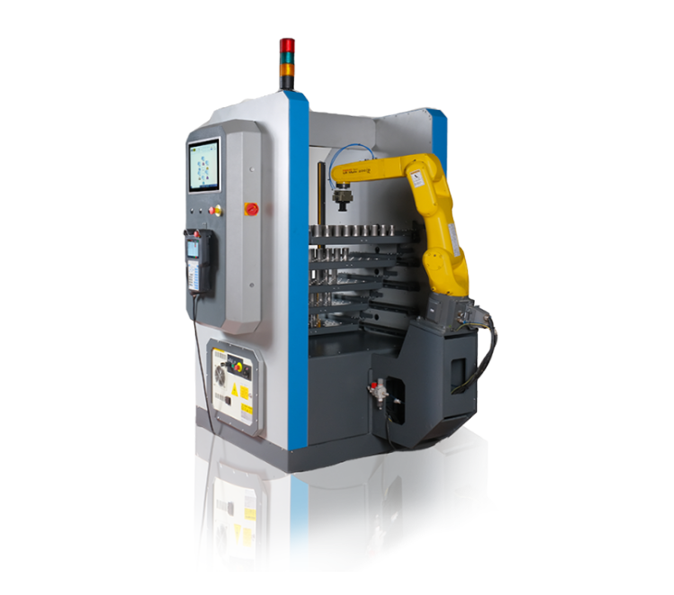

CubeBox_Blues_DR-MINI

Tezmaksan CubeBox Blues DR MINI

The CubeBox DR MINI is a compact, portable robotic automation system designed for CNC machine tending.

  • 5-8 Drawer Stacker with 400mm - 600mm size each
  • Max. Workpiece height 135mm
  • Steel Round Bar Workpiece Min - Max Diameter: 5 - 3500mm

Simple Customized Machine Tending Software

Machine tending systems from CNC Engineering, Inc. go one step further with customized software, designed for simple setup and easy operation - no programming experience required. Scroll through the images below to check out an example.

Robot_HMI_ManCtl_2024-05-16
HMI_RUN 2024-05-16 145310
HMI_TrayLayoutOption 2024-05-16 150350
